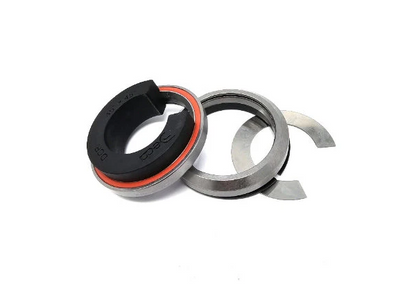

DEDA DCR 1.1/8" - 1.1/2" IS46/52 Headset

Manufacturer’s ref.: HDDCR
The DEDA headset is designed to work with the system DCR (Deda Internal Cable Routing) and is compatible with the Vinci stem. It allows... Read more
51,99 €
51,99 €
View full details

Highlights

  • Allows full cable integration.

Description

The DEDA headset is designed to work with the system DCR (Deda Internal Cable Routing) and is compatible with the Vinci stem.

It allows full cable integration. The DCR system works with a standard tapered fork steerer (1-1/8" - 1-1/2"), but requires a 52 mm (1.5") upper headset bearing.

The special design of the compression ring leaves room for cables to fit in the space between the fork and the headset bearings.

Features

Headset Diameter
Tapered 1"1/8 - 1.5"
Type
Integrated

Technical information

Integrated headset 1.5" - 1.5" ;
Chromium steel angular contact bearings ;
Head tube: 56 mm ;
Contact angle: 45° x 45° ;
For 1.5" and 1 1/8" tapered fork steerer ;
Height: 9.6 mm.
;
