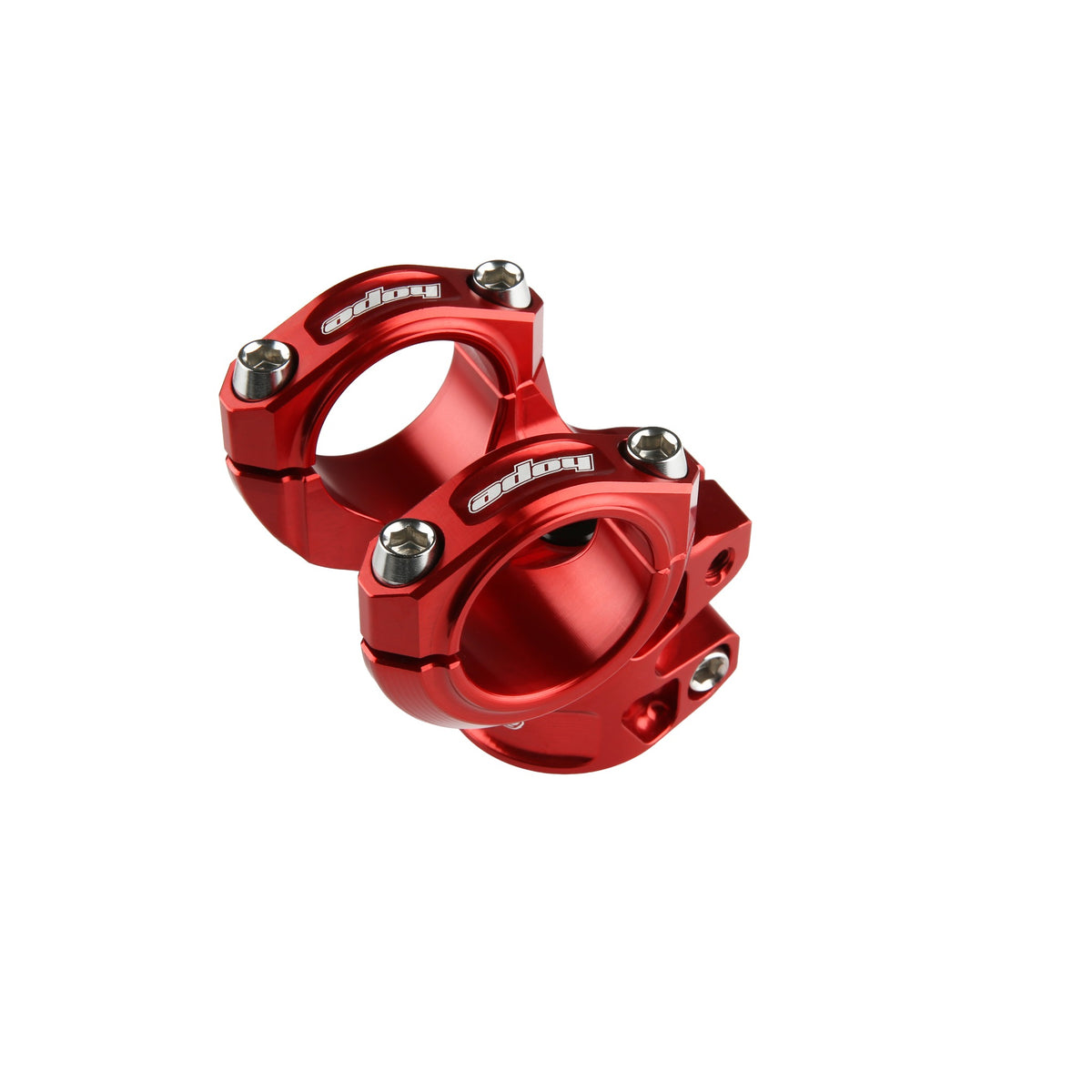

HOPE GRAVITY 20 mm Stem Red
Unable to load collection availability
Description
The HOPE GRAVITY 20 mm Stem Red is designed for enduro and downhill mountain biking. Its very short length brings the hands closer to the steering axis, creating a more compact cockpit and a more upright riding position.
This 20 mm version has a specific design with a 35 mm stack height and an integrated headset top cap, with compression bolt included. Its body is CNC-machined from a block of 2014 T6 aluminium.
Choosing a diameter: select 31.8 mm or 35 mm to match your handlebar’s clamp diameter. The length is 20 mm in both cases.
Installation: the steerer tube must protrude 31 to 33.5 mm above the headset and spacers. Consult the Hope installation instructions in French.
Ref: 16172905824636
Features
• Length : 20 mm
• Handlebar clamp diameter : 31.8 mm or 35 mm, depending on the variant chosen
• Fork steerer diameter : 1"1/8 (28.6 mm)
• Stack height stated by Hope : 35 mm
• Steerer length protruding above the headset and spacers : 31 to 33.5 mm
• Material : CNC-machined from solid 2014 T6 aluminium
• Headset top cap : integrated, compression bolt included
• Tightening torque recommended by Hope : 9 N·m (see instructions)
